Furnace Pots

Our alloyed iron melting and holding pots are heavy walled, long lasting and usually in stock.

Ask us about our guaranteed 2 week delivery on pots and molds not in stock.

Furnace Pots

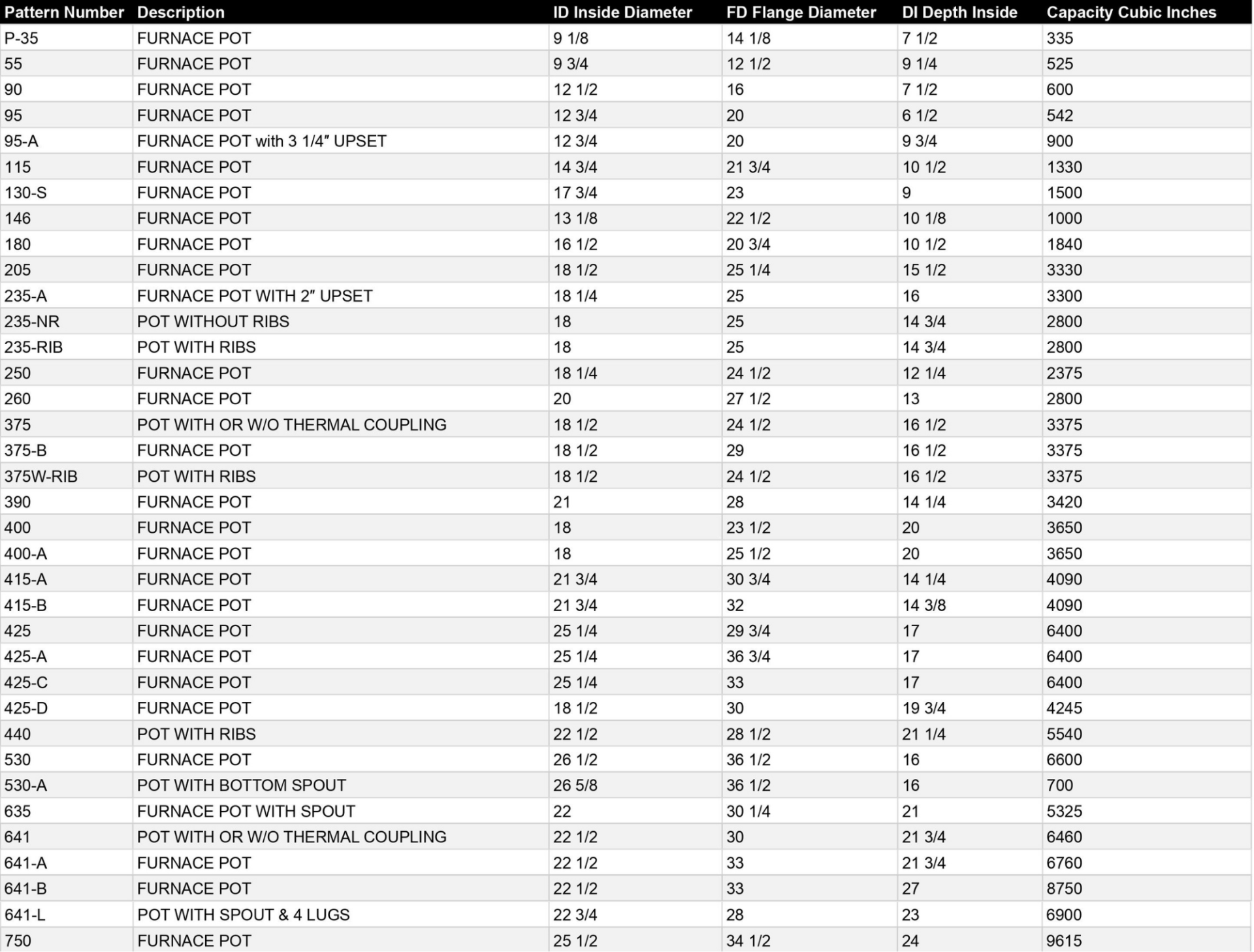

PATTERN
NUMBER
DESCRIPTION ID INSIDE
DIAMETER
FD FLANGE
DIAMETER
DI DEPTH
INSIDE
CAPACITY
CUBIC
INCHES
P-35 FURNACE POT 9 1/8 14 1/8 7 1/2 355
55 FURNACE POT 9 3/4 12 1/2 9 1/4 525
90 FURNACE POT 12 1/2 16 7 1/2 600
95 FURNACE POT 12 3/4 20 6 1/2 542
95-A FURNACE POT
WITH 3 1/4″ UPSET
12 3/4 20 9 3/4 900
115 FURNACE POT 14 3/4 21 3/4 10 1/2 1330
130-S FURNACE POT 17 3/4 23 9 1500
146 FURNACE POT 13 1/8 22 1/2 10 1/8 1000
180 FURNACE POT 16 1/2 20 3/4 10 1/2 1840
205 FURNACE POT 18 1/2 25 1/4 15 1/2 3330
235-A FURNACE POT
WITH 2″ UPSET
18 1/4 25 16 3300
235-NR POT WITHOUT RIBS 18 25 14 3/4 2800
235-RIB POT WITH RIBS 18 25 14 3/4 2800
250 FURNACE POT 18 1/4 24 1/2 12 1/4 2375
260 FURNACE POT 20 27 1/2 13 2800
375 POT WITH OR W/O
THERMAL COUPLING
18 1/2 24 1/2 16 1/2 3375
375-B FURNACE POT 18 1/2 29 16 1/2 3375
375W-RIB POT WITH RIBS 18 1/2 24 1/2 16 1/2 3375
390 FURNACE POT 21 28 14 1/4 3420
400 FURNACE POT 18 23 1/2 20 3650
400-A FURNACE POT 18 25 1/2 20 3650
415-A FURNACE POT 21 3/4 30 3/4 14 1/4 4090
415-B FURNACE POT 21 3/4 32 14 3/8 4090
425 FURNACE POT 25 1/4 29 3/4 17 6400
425-A FURNACE POT 25 1/4 36 3/4 17 6400
425-C FURNACE POT 25 1/4 33 17 6400
435-D FURNACE POT 18 1/2 30 19 3/4 4245
440 FURNACE POT 22 1/2 28 1/2 21 1/4 5540
530 FURNACE POT 26 1/2 36 1/2 16 6600
530-A POT WITH
BOTTOM SPOUT
26 5/8 36 1/2 16 7000
635 FURNACE POT
WITH SPOUT
22 30 1/4 21 5325
641 POT WITH OR W/O
THERMAL COUPLING
22 1/2 30 21 3/4 6460
641-A FURNACE POT 22 1/2 33 21 3/4 6760
641-B FURNACE POT 22 1/2 33 27 8750
641-L POT WITH
SPOUT & 4 LUGS
22 3/4 28 23 6900
750 FURNACE POT 25 1/2 34 1/2 24 9615

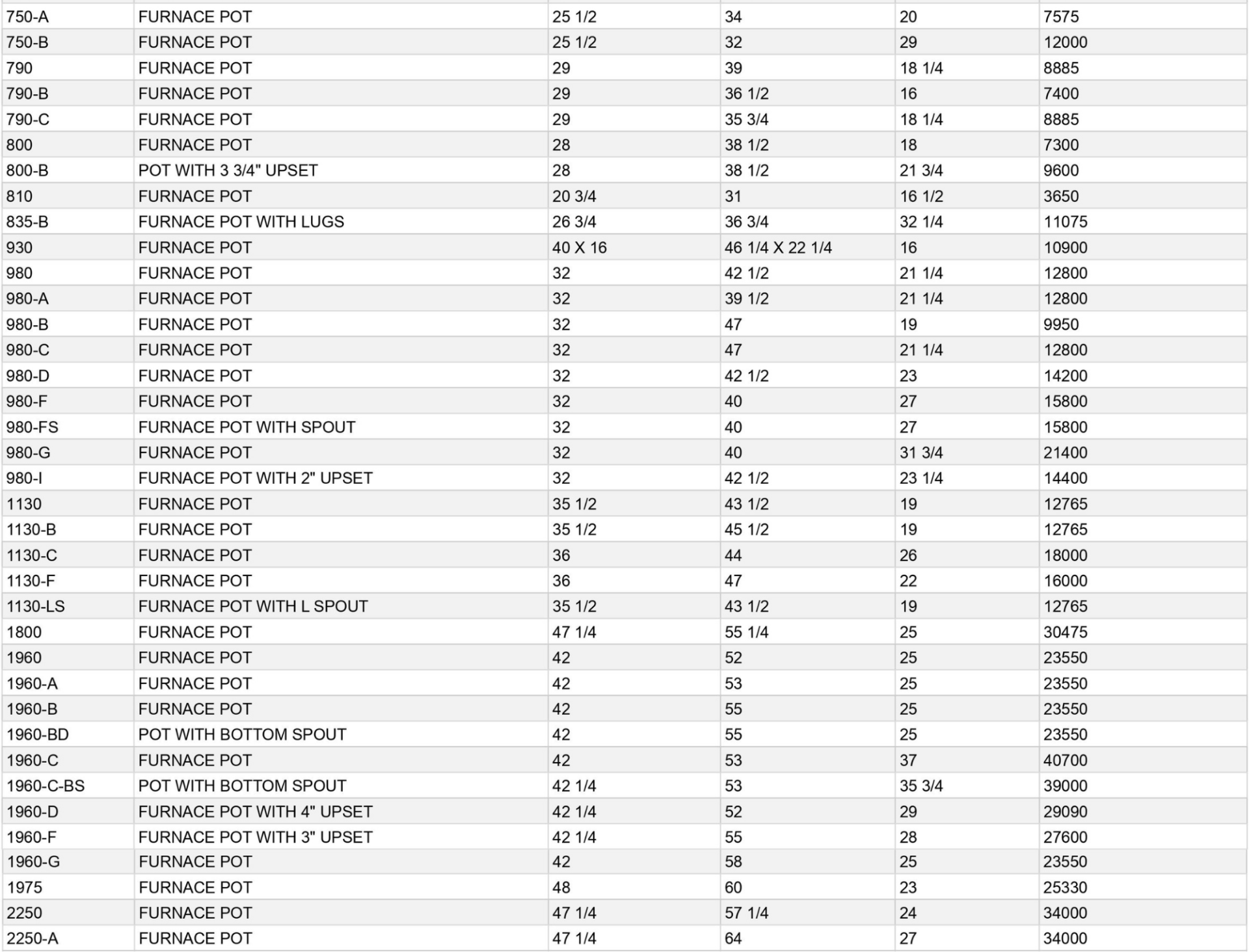

750-A FURNACE POT 25 1/2 34 20 7575
750-B FURNACE POT 25 1/2 32 29 12000
790 FURNACE POT 29 39 18 1/4 8885
790-B FURNACE POT 29 36 1/2 16 7400
790-C FURNACE POT 29 35 3/4 18 1/4 8885
800 FURNACE POT 28 38 1/2 18 7300
800-B POT WITH
3 3/4″ UPSET
28 38 1/2 21 3/4 9600
810 FURNACE POT 20 3/4 31 16 1/2 3650
835-B FURNACE POT
WITH LUGS
26 3/4 36 3/4 32 1/4 11075
930 FURNACE POT 40 X 16 46 1/4 X 22 1/4 16 10900
980 FURNACE POT 32 42 1/2 21 1/4 12800
980-A FURNACE POT 32 39 1/2 21 1/4 12800
980-B FURNACE POT 32 47 19 9950
980-C FURNACE POT 32 47 21 1/4 12800
980-D FURNACE POT 32 42 1/2 23 14200
980-F FURNACE POT 32 40 27 15800
980-FS FURNACE POT
WITH SPOUT
32 40 27 15800
980-G FURNACE POT 32 40 31 3/4 21400
980-I FURNACE POT
WITH 2″ UPSET
32 42 1/2 23 1/4 14400
1130 FURNACE POT 35 1/2 43 1/2 19 12765
1130-B FURNACE POT 35 1/2 45 1/2 19 12765
1130-C FURNACE POT 36 44 26 18000
1130-F FURNACE POT 36 47 22 16000
1130-LS FURNACE POT
WITH L SPOUT
35 1/2 43 1/2 19 12765
1800 FURNACE POT 47 1/4 55 1/4 25 30475
1960 FURNACE POT 42 52 25 23550
1960-A FURNACE POT 42 53 25 23550
1960-B FURNACE POT 42 55 25 23550
1960-BD POT WITH
BOTTOM SPOUT
42 55 25 23550
1960-C FURNACE POT 42 53 37 40700
1960-C-BS POT WITH
BOTTOM SPOUT
42 1/4 53 35 3/4 39000
1960-D FURNACE POT
WITH 4″ UPSET
42 1/4 52 29 29090
1960-F FURNACE POT
WITH 3″ UPSET
42 1/4 55 28 27600
1960-G FURNACE POT 42 58 25 23550
1975 FURNACE POT 48 60 23 25330
2250 FURNACE POT 47 1/4 57 1/4 27 34000
2250-A FURNACE POT 47 1/4 64 27 34000

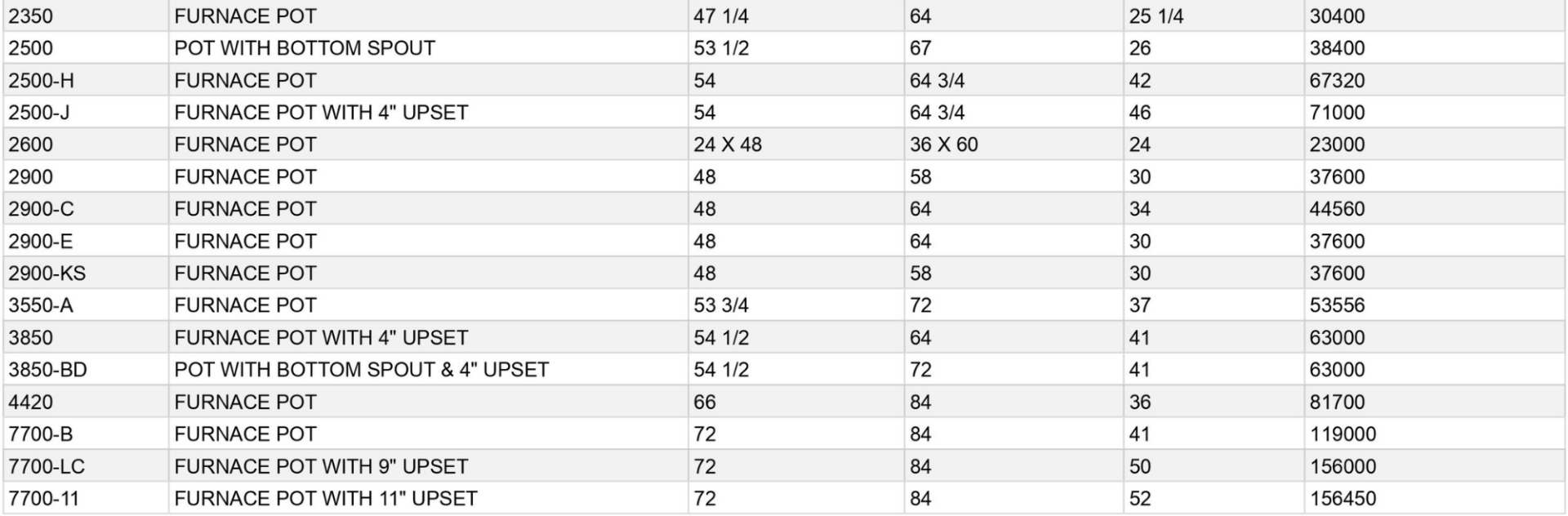

2350 FURNACE POT 47 1/4 64 25 1/4 30400
2500 FURNACE POT 53 1/2 67 26 38400
2500-H FURNACE POT 54 64 3/4 42 67320
2500-J FURNACE POT
WITH 4″ UPSET
54 64 3/4 46 71000
2600 FURNACE POT 24 X 48 36 X 60 24 23000
2900 FURNACE POT 48 58 30 37600
2900-C FURNACE POT 48 64 34 44560
2900-E FURNACE POT 48 64 30 37600
2900-KS FURNACE POT 48 58 30 37600
3550-A FURNACE POT 53 3/4 72 37 53556
3850 FURNACE POT
WITH 4″ UPSET
54 1/2 64 41 63000
3850-BD POT WITH BOTTOM
SPOUT & 4″ UPSET
54 1/2 72 41 63000
4420 FURNACE POT 66 84 36 81700
7700-B FURNACE POT 72 84 41 119000
7700-LC FURNACE POT
WITH 9″ UPSET
72 84 50 156000
7700-11 FURNACE POT
WITH 11″ UPSET
72 84 52 156450

SETTING RINGS AVAILABLE UPON REQUEST
