Pullmore Clutch Parts

1

Pottstown Division stocks a wide variety of Pullmore Clutch Parts. Other obsolete parts are generally available in a few weeks or less.

When ordering PULLMORE CLUTCH replacement parts, be sure to furnish the inside diameter of the clutch body and the largest outside diameter of the shipper sleeves. Also be sure to tell us whether it is an oil or dry; single or double type clutch. It you know the number of your PULLMORE CLUTCH, simply order the parts wanted – as indicated by the following list. It will help us to supply the correct parts if you will give us the name, kind, size and type machine in which the clutch is used.

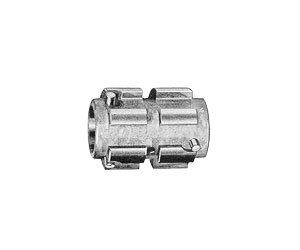

2PULLMORE SHIPPER SLEEVE

Give number of clutch, or sizes. State whether oil or dry; single or double type.

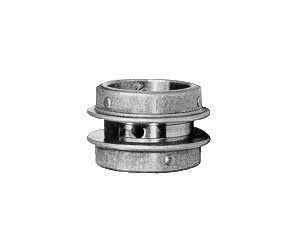

6PULLMORE Double Type CLUTCH BODY

Give number of clutch, or sizes. State whether oil or dry type.

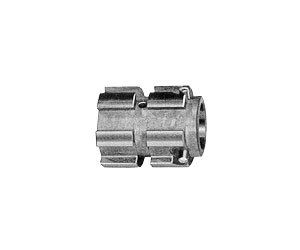

7PULLMORE Single Type CLUTCH BODY

Give number of clutch, or sizes. State whether oil or dry; single or double type.

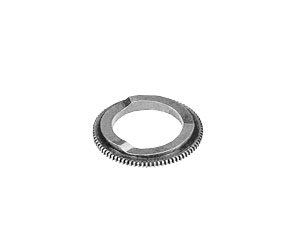

8PULLMORE ADJUSTMENT COLLAR

Give number of clutch, or sizes. State whether oil or dry; single or double type. Specify number of collars wanted.

9PULLMORE THRUST PLATE

Give clutch number, or sizes. State whether oil or dry; single or double type. Specify number of plates wanted.

0PULLMORE PRESSURE PLATE

Give clutch number, or sizes. State whether oil or dry; single or double type. Specify number of plates wanted.

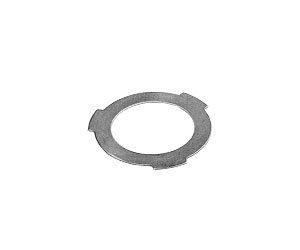

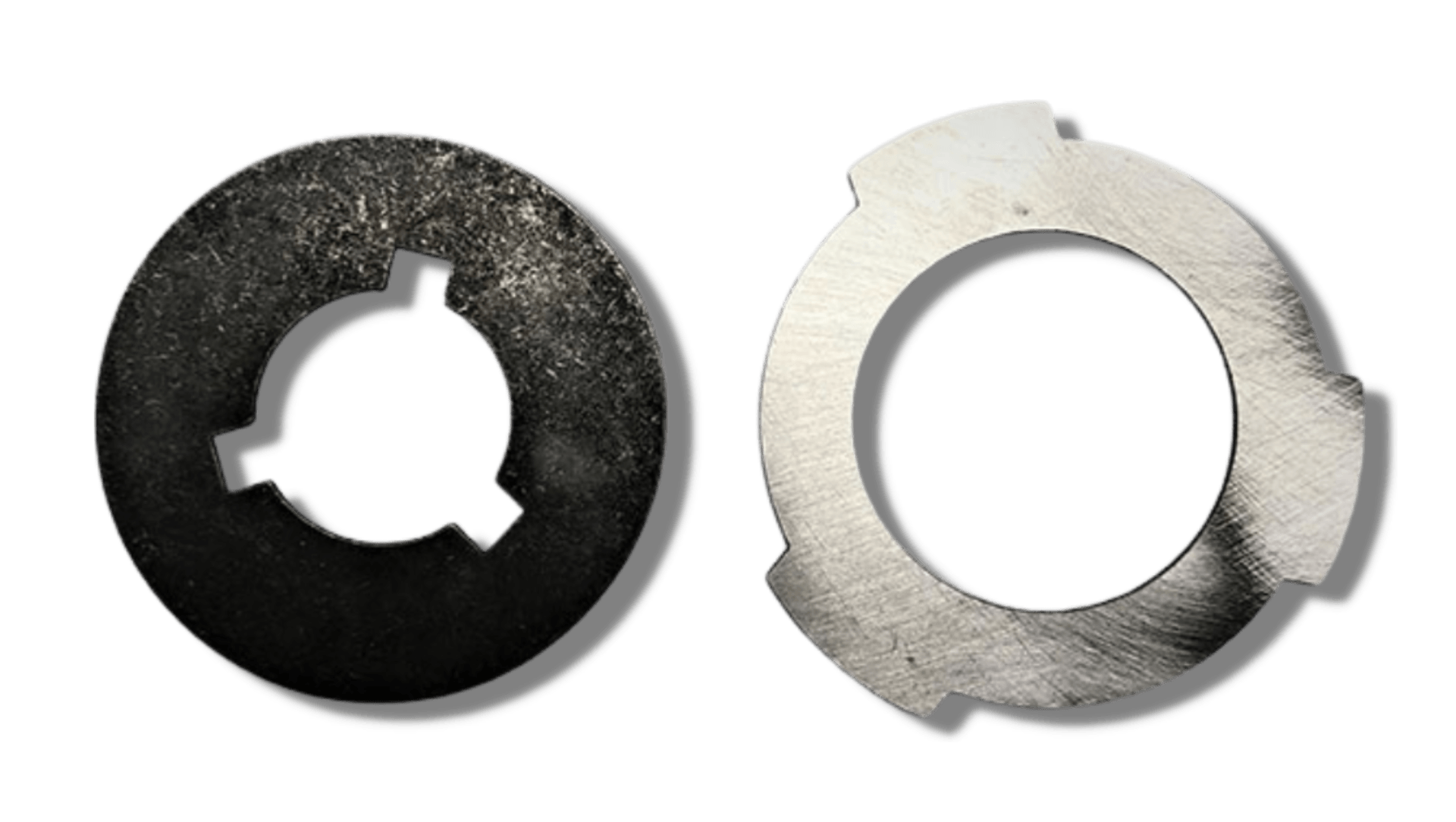

1PULLMORE OUTER DISCS

Give number of clutch, or sizes. State whether oil or dry; single or double type. Specify number of discs wanted.

2PULLMORE INNER DISCS

Give number of clutch, or sizes. State whether oil or dry; single or double type. Specify number of discs wanted.

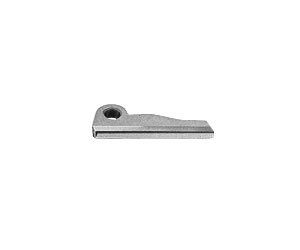

3PULLMORE DOGS

Give clutch number, or sizes. State whether oil or dry; single or double type. Specify number of dogs wanted.

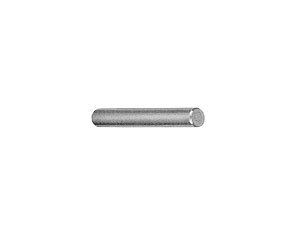

3PULLMORE ANCHOR PIN

Give number of clutch, or sizes. State whether oil or dry; single or double type.

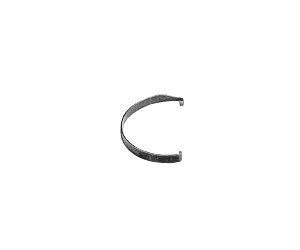

4PULLMORE ADJUSTMENT LOCK SPRING

Give number of clutch, or sizes. State whether oil or dry; single or double type. Specify number of springs wanted.

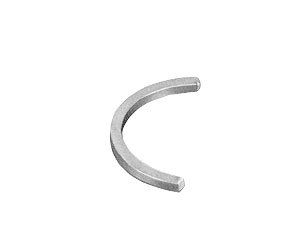

11PULLMORE SPLIT RING
2 HALVES MAKE 1 RING

Give clutch number, or sizes. State whether oil or dry; single or double type. Specify number of rings wanted.

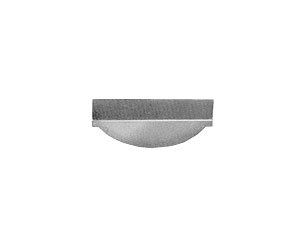

5HIPRO KEYS

Give clutch number, or furnish sizes. State whether oil or dry; single or double type. Specify number of keys wanted.

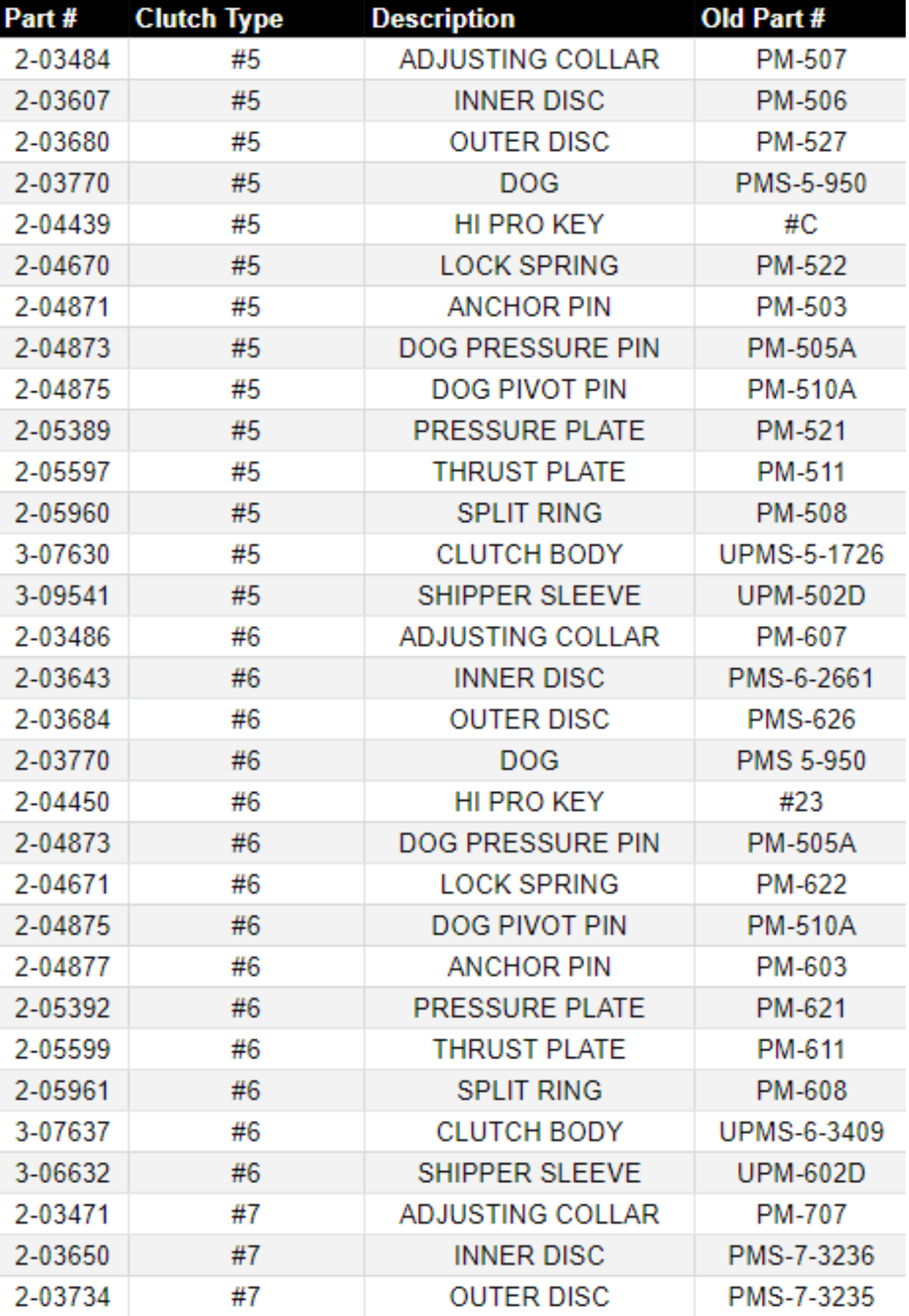

Pullmore Clutch Parts
PART # CLUTCH
TYPE
DESCRIPTION OLD PART #
2-03484 #5 ADJUSTING COLLAR PM-507
2-03607 #5 INNER DISC PM-506
2-03680 #5 OUTER DISC PM-526
2-03770 #5 DOG PMS-5-950
2-04439 #5 HI PRO KEY #C
2-04670 #5 LOCK SPRING PM-522
2-04871 #5 ANCHOR PIN PM-503
2-04873 #5 DOG PRESSURE PIN PM-505A
2-04875 #5 DOG PIVOT PIN PM-510A
2-05389 #5 PRESSURE PLATE PM-521
2-05597 #5 THRUST PLATE PM-511
2-05960 #5 SPLIT RING PM-508
3-07630 #5 CLUTCH BODY UPMS-5-1726
3-09541 #5 SHIPPER SLEEVE UPM-502D
2-03486 #6 ADJUSTING COLLAR PM-607
2-03643 #6 INNER DISC PMS-6-2661
2-03684 #6 OUTER DISC PM-626
2-03770 #6 DOG PMS 5-950
2-04450 #6 HI PRO KEY #23
2-04873 #6 DOG PRESSURE PIN PM-505A
2-04671 #6 LOCK SPRING PM-622
2-04875 #6 DOG PIVOT PIN PM-510A
2-04877 #6 ANCHOR PIN PM-603
2-05392 #6 PRESSURE PLATE PM-621
2-05599 #6 THRUST PLATE PM-611
2-05961 #6 SPLIT RING PM-608
3-07637 #6 CLUTCH BODY UPMS-6-3409
3-06632 #6 SHIPPER SLEEVE UPM-602D
2-03471 #7 ADJUSTING COLLAR PM-707
2-03650 #7 INNER DISC PMS-7-3236
2-03734 #7 OUTER DISC PMS-7-3235

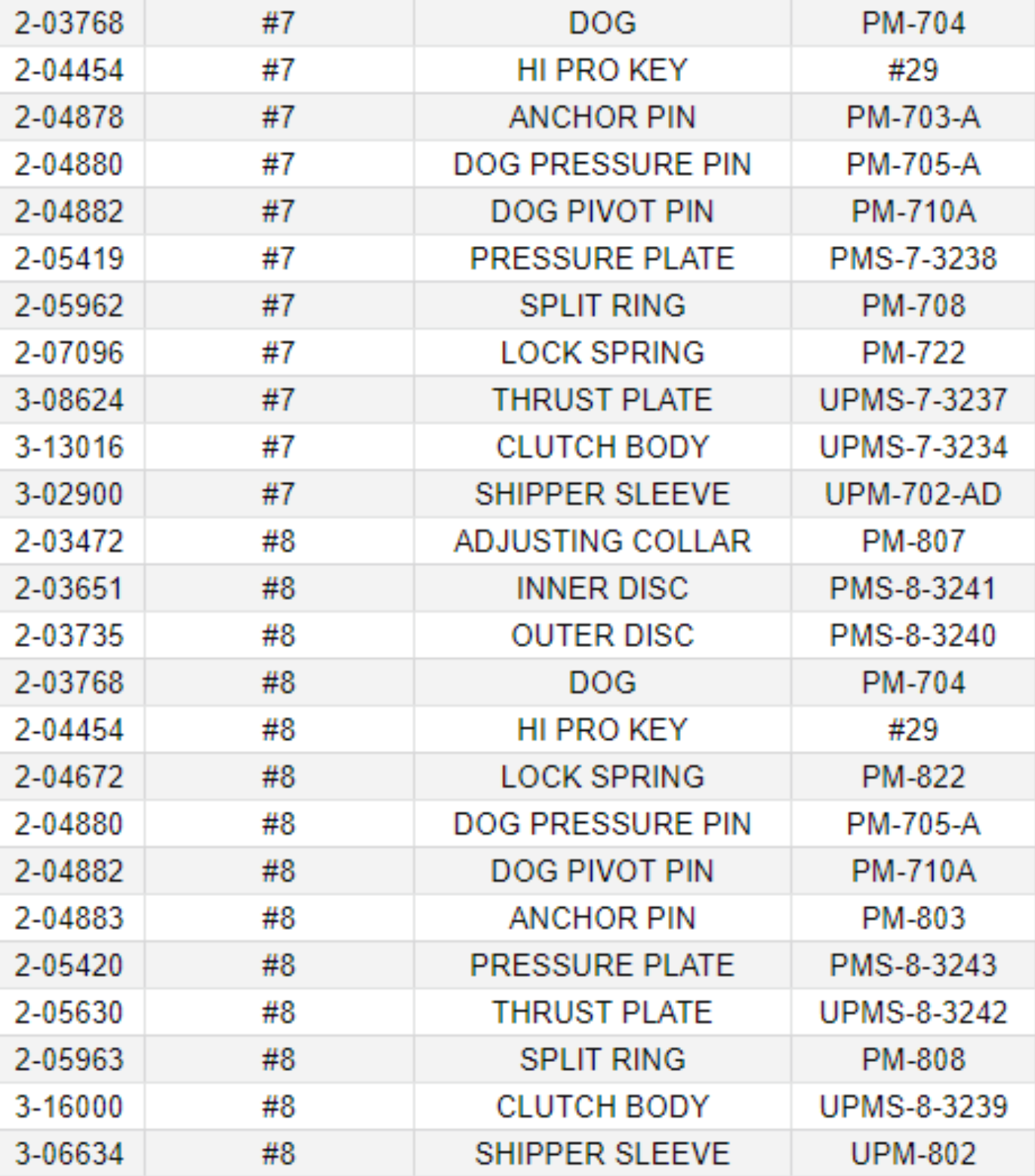

2-03768 #7 DOG PM-704
2-04454 #7 HI PRO KEY #29
2-04878 #7 ANCHOR PIN PM-703-A
2-04880 #7 DOG PRESSURE PIN PM-705-A
2-04882 #7 DOG PIVOT PIN PM-710A
2-05419 #7 PRESSURE PLATE PMS-7-3238
2-05962 #7 SPLIT RING PM-708
2-07096 #7 LOCK SPRING PM-722
3-08624 #7 THRUST PLATE UPMS-7-3237
3-13016 #7 CLUTCH BODY UPMS-7-3234
3-02900 #7 SHIPPER SLEEVE UPM-702-AD
2-03472 #8 ADJUSTING COLLAR PM-807
2-03651 #8 INNER DISC PMS-8-3241
2-03735 #8 OUTER DISC PMS-8-3240
2-03768 #8 DOG PM-704
2-04454 #8 HI PRO KEY #29
2-04672 #8 LOCK SPRING PM-822
2-04880 #8 DOG PRESSURE PIN PM-705-A
2-04882 #8 DOG PIVOT PIN PM-710A
2-04883 #8 ANCHOR PIN PM-803
2-05420 #8 PRESSURE PLATE PMS-8-3243
2-05630 #8 THRUST PLATE UPMS-8-3242
2-05963 #8 SPLIT RING PM-808
3-16000 #8 CLUTCH BODY UPMS-8-3239
3-06634 #8 SHIPPER SLEEVE UPM-802

COMPLETE CLUTCHES ARE ALSO AVAILABLE
